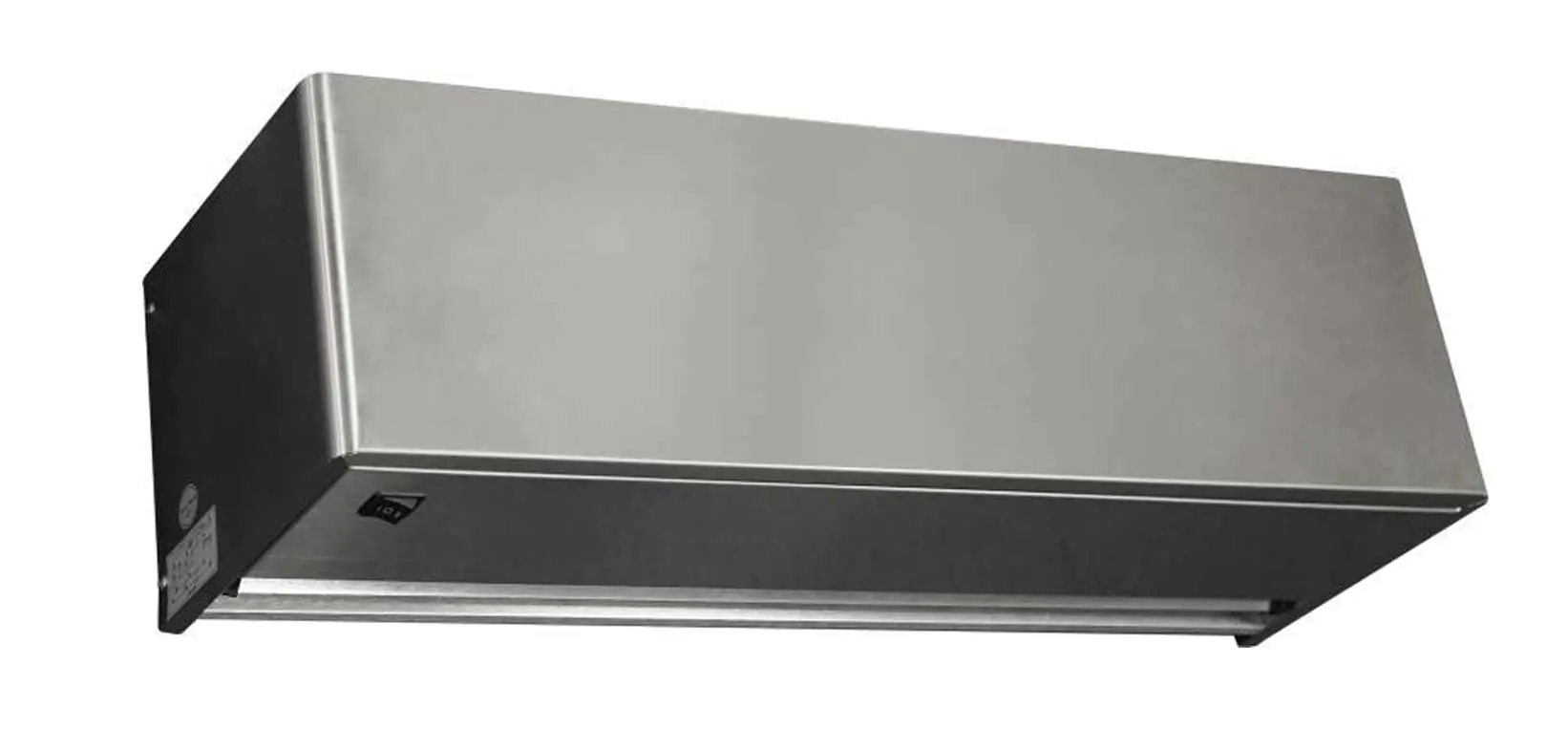

Application: for the door of store restaurants, retail shop, sports center and station etc
Patent design and upgraded performance, good appearance and better quality.
Combine the advantage of cross flow and centrifugal air duct obtained the high air velocity at the same time.
High Efficient motor with thermal protector can operate continuously 5000h without failure. Higher air volume with superior performance.
Special Design of air deflection vane enables to adjust the air direction easily. Two speeds controlled by the remote control or Key Switch.
Silver Aluminum sand blast shell, 3D shape, newly aluminum bar air intake panel.

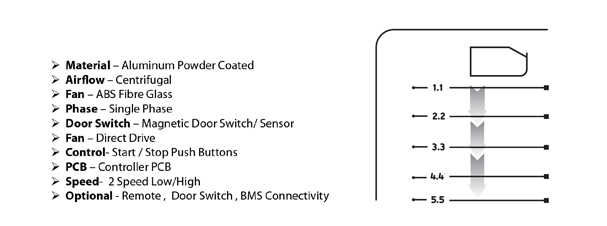

(Mounting height up to 5.5m) | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | Wheel Diameter (mm) |
Width (mm) |
Volt (v) |
Frequency (Hz) |
Air Velocity low (m/s) |
Air Velocity High (m/s) |
Air Volume low (m3/h) |
Air Volume High (m3/h) |
Noise dB(A) |
Input Power (w) |
Net Weight (kg) |
Gross Weight (kg) |
Dimension (mm) |
FRX-5509H-L/Y | 120 | 900 | 220-240 | 50/60 | 17.5 | 21 | 1200 | 1450 | 48 | 440 | 16.8 | 18.3 | 900X235X215 |
FRX-5510H-L/Y | 120 | 1000 | 220-240 | 50/60 | 17.5 | 21 | 1200 | 1450 | 48 | 440 | 18.5 | 25.5 | 1000X235X215 |
FRX-5512H-L/Y | 120 | 1200 | 220-240 | 50/60 | 17.5 | 21 | 1600 | 1930 | 49 | 550 | 23.5 | 25.5 | 1200X235X215 |
FRX-5515H-L/Y | 120 | 1500 | 220-240 | 50/60 | 17.5 | 21 | 2020 | 2420 | 52 | 780 | 27.5 | 30.0 | 1500X235X215 |
FRX-5518H-L/Y | 120 | 1800 | 220-240 | 50/60 | 17.5 | 21 | 2420 | 2900 | 52 | 830 | 33.5 | 36.5 | 1800X235X215 |
FRX-5520H-L/Y | 120 | 2000 | 220-240 | 50/60 | 17.5 | 21 | 2950 | 3300 | 56 | 850 | 35.8 | 39.6 | 2000X235X215 |
